Microgeometry Capture using an Elastomeric Sensor

M.K. Johnson, F. Cole, A. Raj, and E.H. Adelson

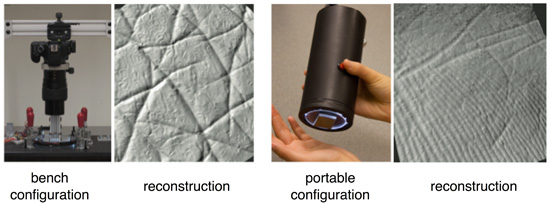

We describe a system for capturing microscopic surface geometry. The system extends the retrographic sensor Johnson and Adelson, 2009 to the microscopic domain, demonstrating spatial resolution as small as 2 microns. In contrast to existing microgeometry capture techniques, the system is not affected by the optical characteristics of the surface being measured - it captures the same geometry whether the object is matte, glossy, or transparent. In addition, the hardware design allows for a variety of form factors, including a hand-held device that can be used to capture high-resolution surface geometry in the field. We achieve these results with a combination of improved sensor materials, illumination design, and reconstruction algorithm, as compared to the original sensor of Johnson and Adelson.





This material is based upon work supported by the National Science Foundation under Grant No. 0739255. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the National Science Foundation.
